^{Personal Real Time Tracking Mini LBS Tracker}

 ^{1. Brief Introduction}

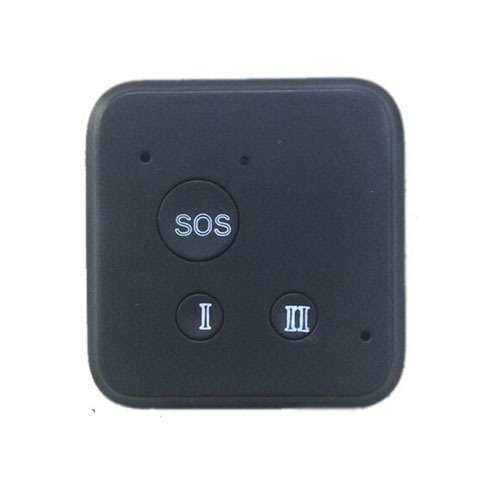

GEP-TX-9A LBS Tracker is a high technology product for personal tracking and security. It's small and smart, use lastest GSM chip guarantee the accuracy and fast uploading to system, make it real live monitor.

GEP-TX-9A LBS Tracker has SOS function, can monitoring and also can double-talk.

^{2. Packaging & Delivery}

^{GIFT BOX:
Main device*1}
Power charge cord*1
User Manual *1

^{3. Main Function}

GSM Quad-band frequency (Global use);
Can bind 6 cell phone numbers
Built-in microphone and loudspeaker realized real-time monitor and phone call to bound phone No.                             Support Electric Quantity Checking,Low Battery Alarm,Power Saving Mode Setting,IP Setting,IMEI Number Checking          Live Tracking Monitoring Platform&APP

^{4. Technical Data}

Work voltage                           4.2VDC Battery
Work current                           Standard Mode 50mA @ 5VDC
                                                Power Saving Mode:15mA @ 5VDC
Dimension                               44*39*15(mm)
Net weight                                30g
Frequency                               Quad-band: 850/900/1800/1900MHz
GSM Performance Index          Position Accuracy: 50m (60%)
                                                                             150m (95%)
Output Interface                       Charge/Digital Port
Antennas                                  GPS Antenna: build-in
                                                 GSM Antenna: build-in
Work temperature                     -20℃～+70℃
Work Humidity                           5%～95%
Storage Temperature               -40℃～+85℃
